紧凑型太赫兹光谱仪
Zomega成立于2005年，由伦斯勒理工学院的张希成教授带领的研发团队组建而成，主要致力于THz光谱系统研究。Zomega THz时域光谱系统主要由PCA、光延迟线、样品室、ZnTe探测器、Wollaston棱镜、自平衡光电探测器等部分组成。
Zomega产品介绍

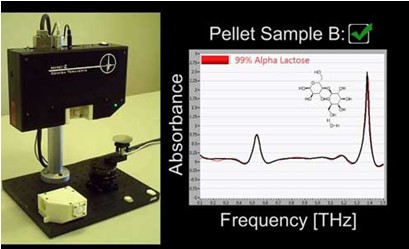

mini-Z是Zomega开发的目前世界上最紧凑的、高集成的THz时域光谱分析仪，重量仅为2kg。光谱覆盖0.1-4.0THz，有反射式或透射式两种产品。主要应用于药品检测、过程控制和无损检测等应用领域。
|
Spectral Range
|
0.1-4.0THz
|
|
Freq. Resolution
|
<50GHz (after FFT)
|
|
Dynamic Range
|
> 70dB (peak)
|
|
Operational Geometry
|
Transmission & Reflection
|
|
Standoff Distance
|
1-40cm
|
|
THz Emitter
|
Photoconductive Antenna
|
|
THz Detector
|
ZnTe Electro-Optical Crystal
|
|
Software
|
Labview Supported Software
|
|
Interface
|
USB 2.0 & Bluetooth
|
|
Size (LxWxH)
|
10.5"x6.25"x2.75"
|
|
Weight (lbs)
|
< 4.2 lbs
|
Z-2 THz 时域光谱系统是一款关于THz脉冲产品，用户可在此基础上进行第二次开发。THz脉冲光谱范围覆盖0.1-3.5THz，具有5GHz的光谱分辨率。
|
|
Spectral Range
|
0.1-3.5THz
|
|
Freq. Resolution
|
< 5GHz (after FFT)
|
|
Maximum Time Delay Scan
|
> 1300 ps
|
|
Dynamic Range
|
70dB
|
|
Operational Geometry
|
Transmission & Reflection
|
|
Standoff Distance
|
50cm+/-2.5cm
|
|
THz Emitter
|
Photoconductive Antenna (LT GaAs substrate)
|
|
THz Detector
|
ZnTe Electro-Optical Crystal
|
|
Software
|
Labview Supported Software
|
|
Size (LxWxH)
|
26"x20"12"
|
|
Weight (lbs)
|
< 50 lbs
|
|
